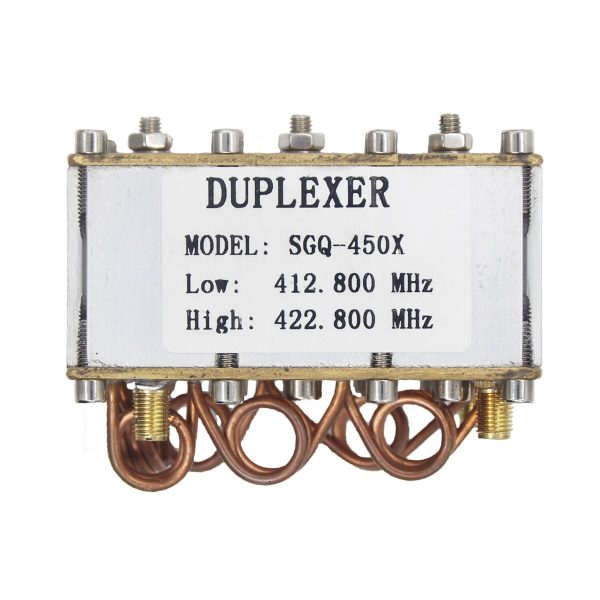

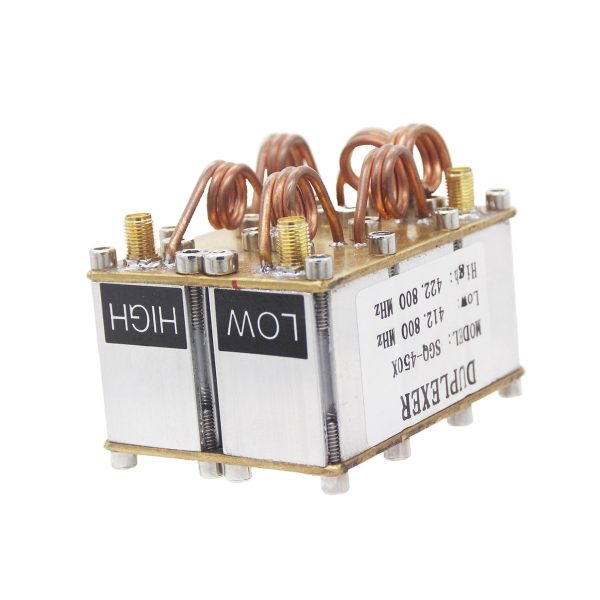

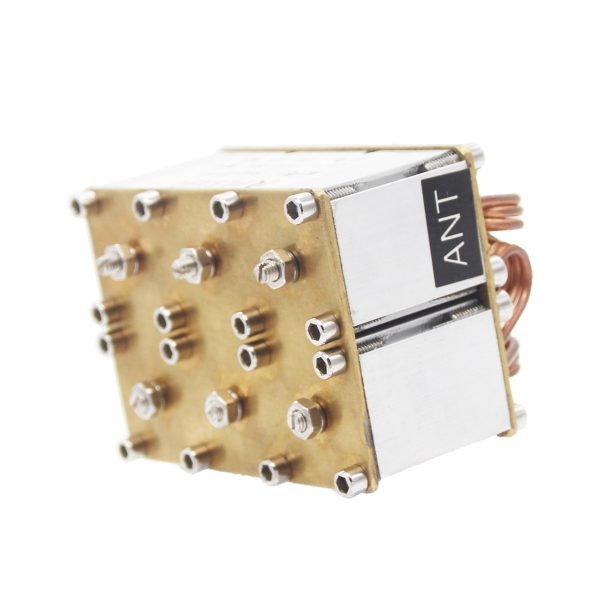

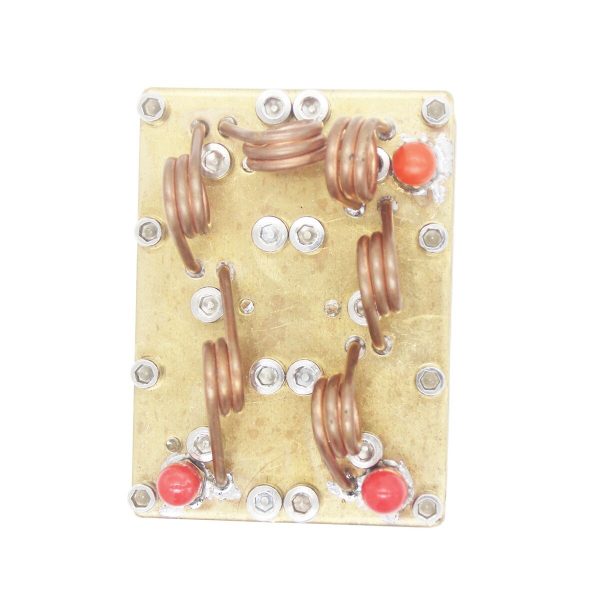

SGQ-450X UHF 10W 400-470MHz Mini Portable Duplexer Specification: Product Number:SGQ-450X Frequency Range:400-470MHz Bandwidth: 0.1MHz Frequency Spacing:10MHz Isolation Loss: Less than 1.3dB V.S.W.R: Less than 1.3 Isolation: Greater than 75dB Suppression: Greater than 75dB Impedance:50Ω Max.power Input:10W Standard Termination:SMA-Female Operating temperature:-25℃- 55℃ Operating Humidity:5-95% material: metal Color as shown Package Contents: 1 x Duplexer Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
