Diamond Antenna Duplexers MX62M Diamond antenna MX-62M

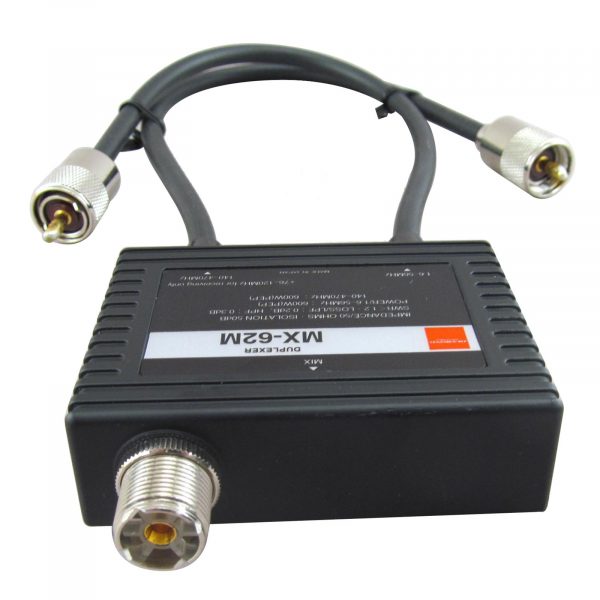

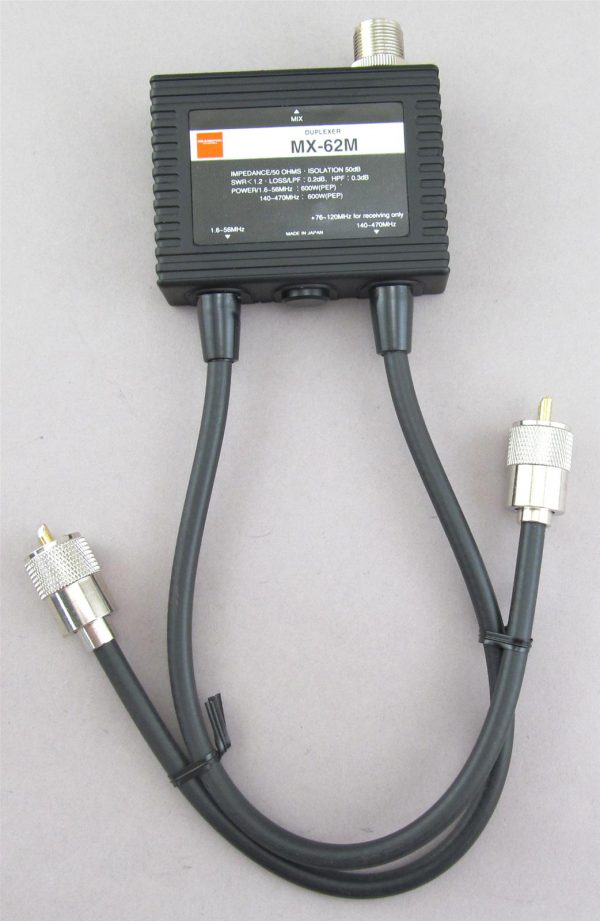

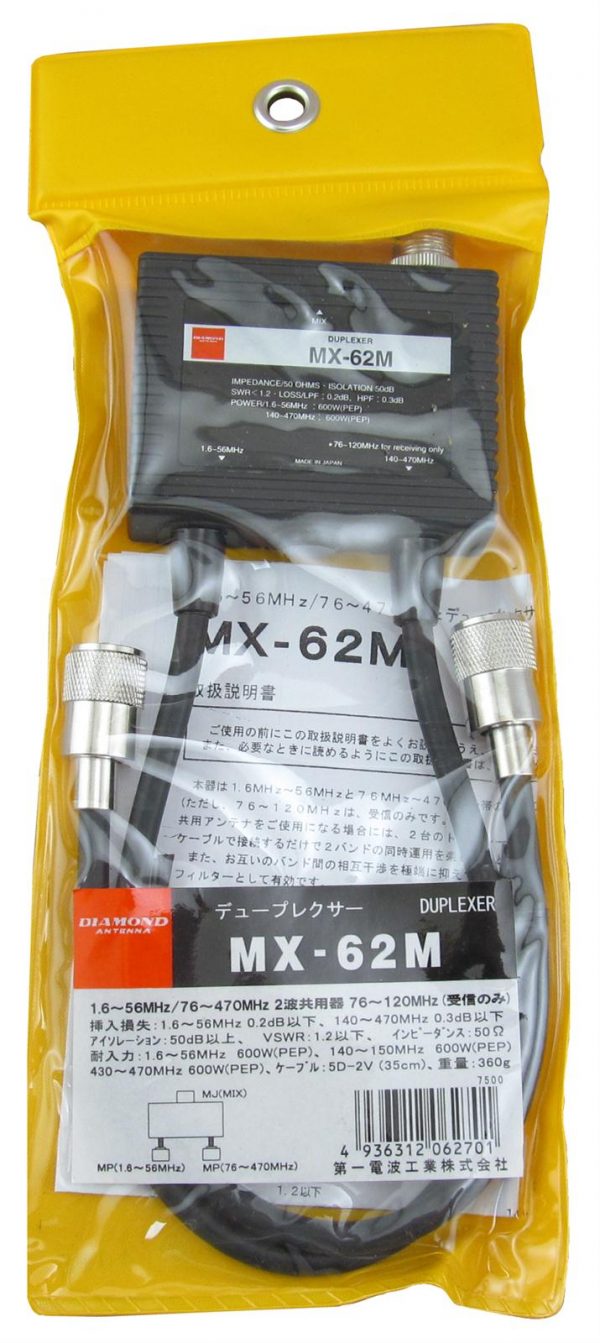

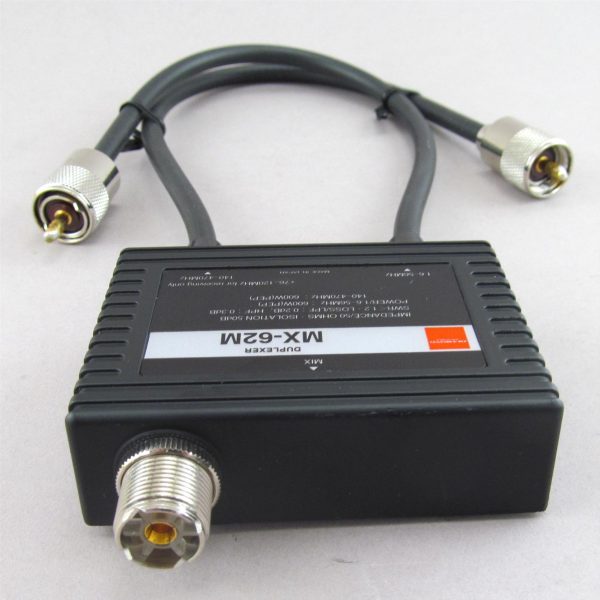

Diamond Antenna Duplexers MX62M Diamond MX-62M Japanese UV HF shortwave antenna combiner dual frequency splitter integrator Brand: Diamond Antenna Manufacturer’s Part Number: MX62M Part Type: Duplexers and Triplexers Product Line: Diamond Antenna Duplexers DXE Part Number: DMN-MX62M Low Pass Frequency Coverage: 1.6-56 MHz High Pass Frequency Coverage: 76-470 MHz Low Pass Loss: 0.2 dB High Pass Loss: 0.3 dB Low Pass PEP: 600 watts High Pass PEP:600 watts Isolation: 50 dB Mix Connector: UHF female, SO-239 Low Pass Port Connector Type: UHF male, PL-259 High Pass Port Connector Type: UHF male, PL-259 Quantity: Sold individually. Notes: Features 12 in. 5D cables. Diamond Antenna Duplexers are just what you need when splitting HF, VHF, or UHF signals. These duplexers may be used for combining two transceivers into one coax feed line. They are ideal for connecting HF/VHF radios, such ICOM IC-706 and IC-7000 series, and Yaesu FT-857 series, with two antenna ports, to a single feedline multi-band antenna, like the Diamond V7A. Diamond Antenna Duplexers eliminate the need to use an antenna switch and are made with a high-quality aluminum case with a black finish.
