MX304 SDR Transceiver Switch HamGeek MX-304 Antenna Switch For 3 Antennas and 4 Transceivers

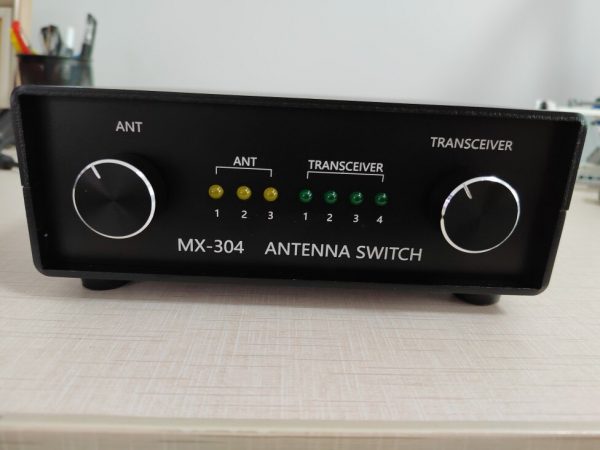

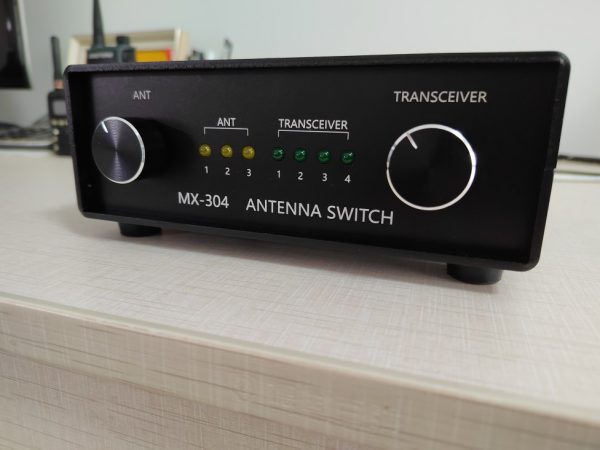

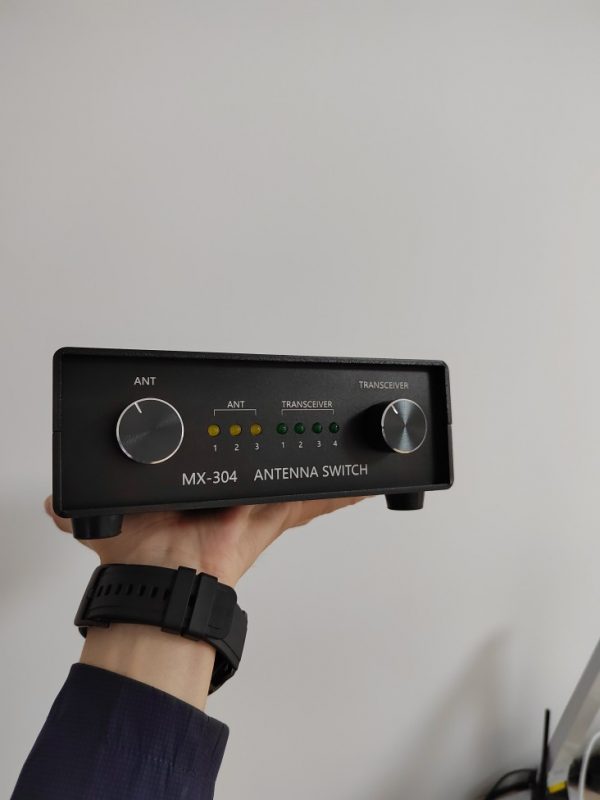

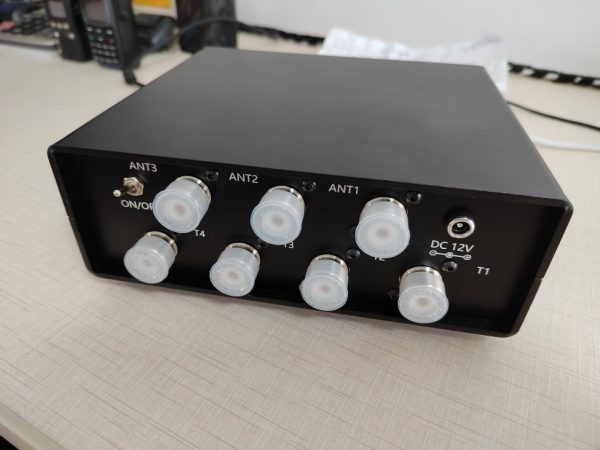

HamGeek MX-304 Antenna Switch SDR Transceiver Switch for Three Antennas and Four Transceivers Description: HamGeek MX-304 Antenna Switch is used to connect 3 antennas and 4 transceivers. Users can choose their own desired antenna and transceiver through the two switches on the panel. Meanwhile, the transceivers that are not selected will be automatically bypassed to a 50Ω/150W high-frequency dummy load to avoid damage to them due to operational errors. The antennas that are not selected will be automatically shorted to ground. After the whole machine is turned off, all connected transceivers will be connected to the dummy load. Specifications: – Impedance: 50Ω – Supply voltage: 12V (10-14V)/0.5A – Withstand power: ≤ 200W – Insertion loss: 0.2dB – Operating frequency: DC-30Mhz – Interface: SL16 – SWR: ≤ 1.5 – Size: 185 x 160 x 65mm/7.3 x 6.3 x 2.6″ (WxDxH) – Weight: 1.2KG/2.6LB Package Included: – 1 x HamGeek MX304 Antenna Switch
